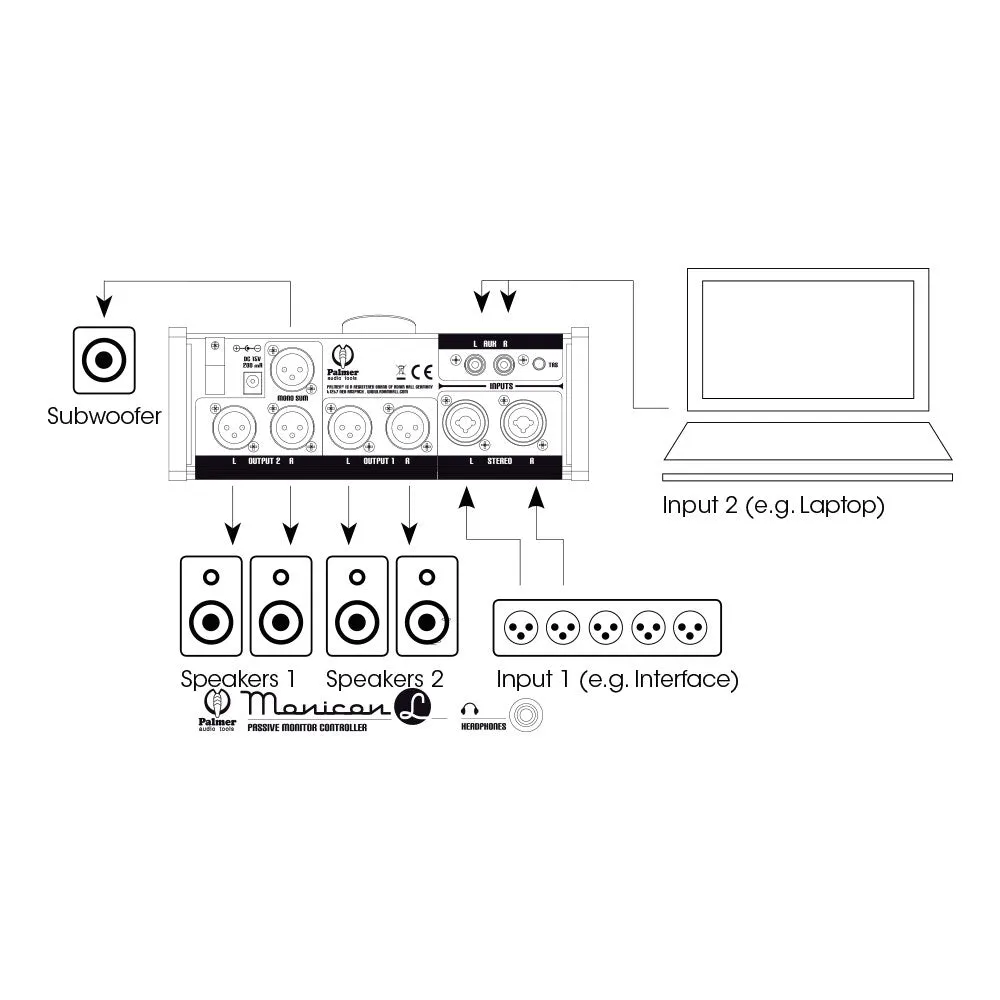

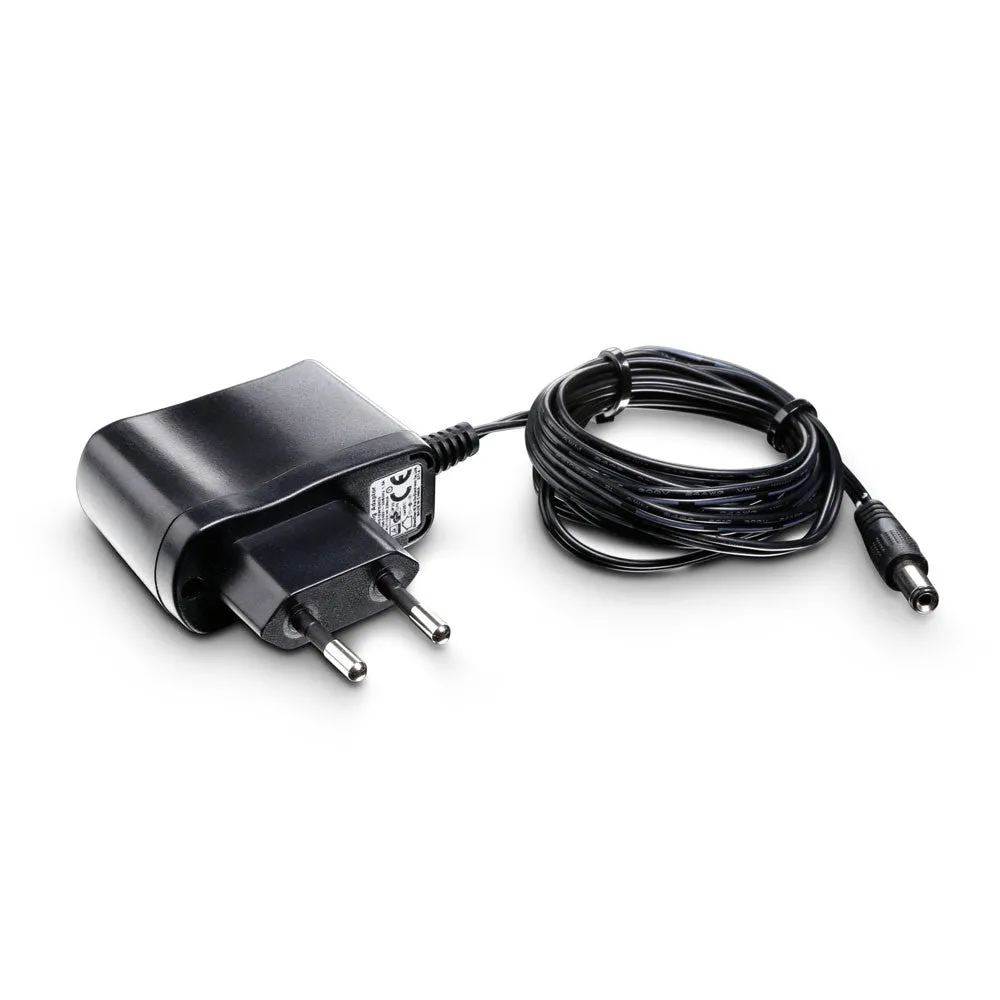

The Palmer Monicon® L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

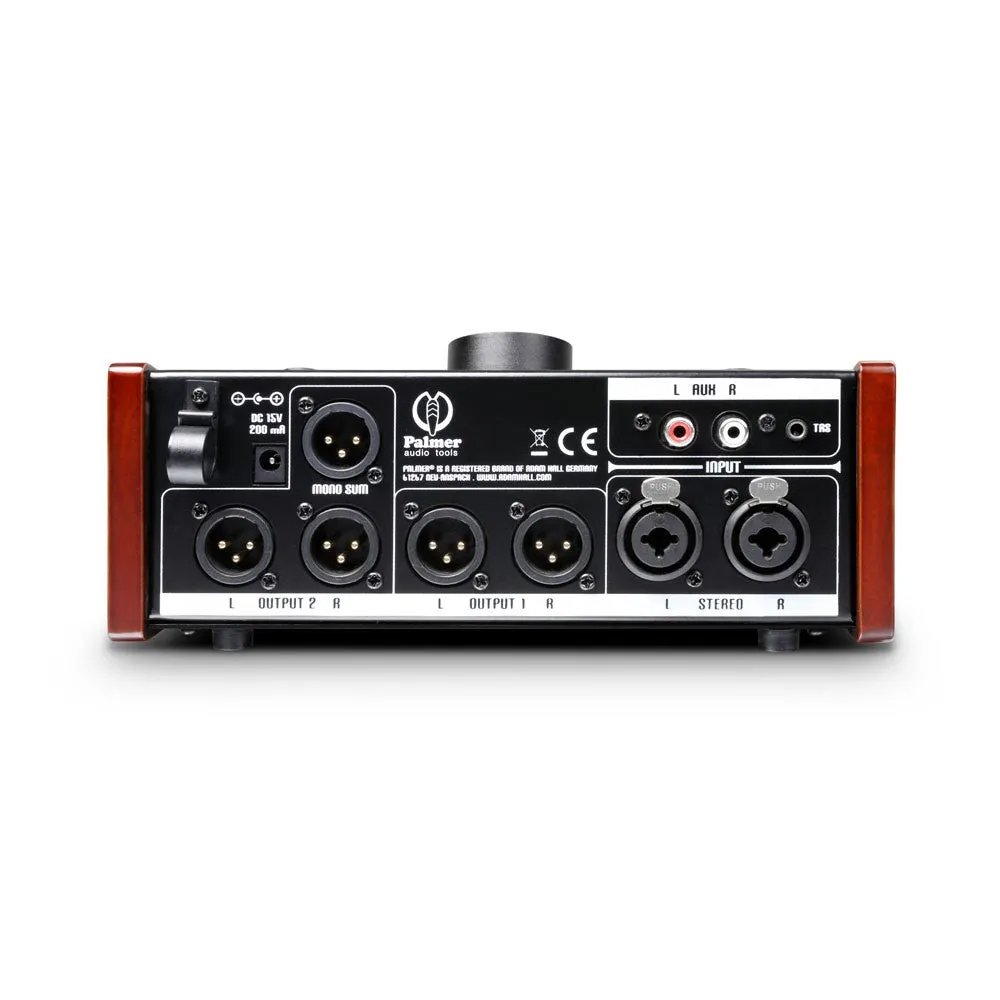

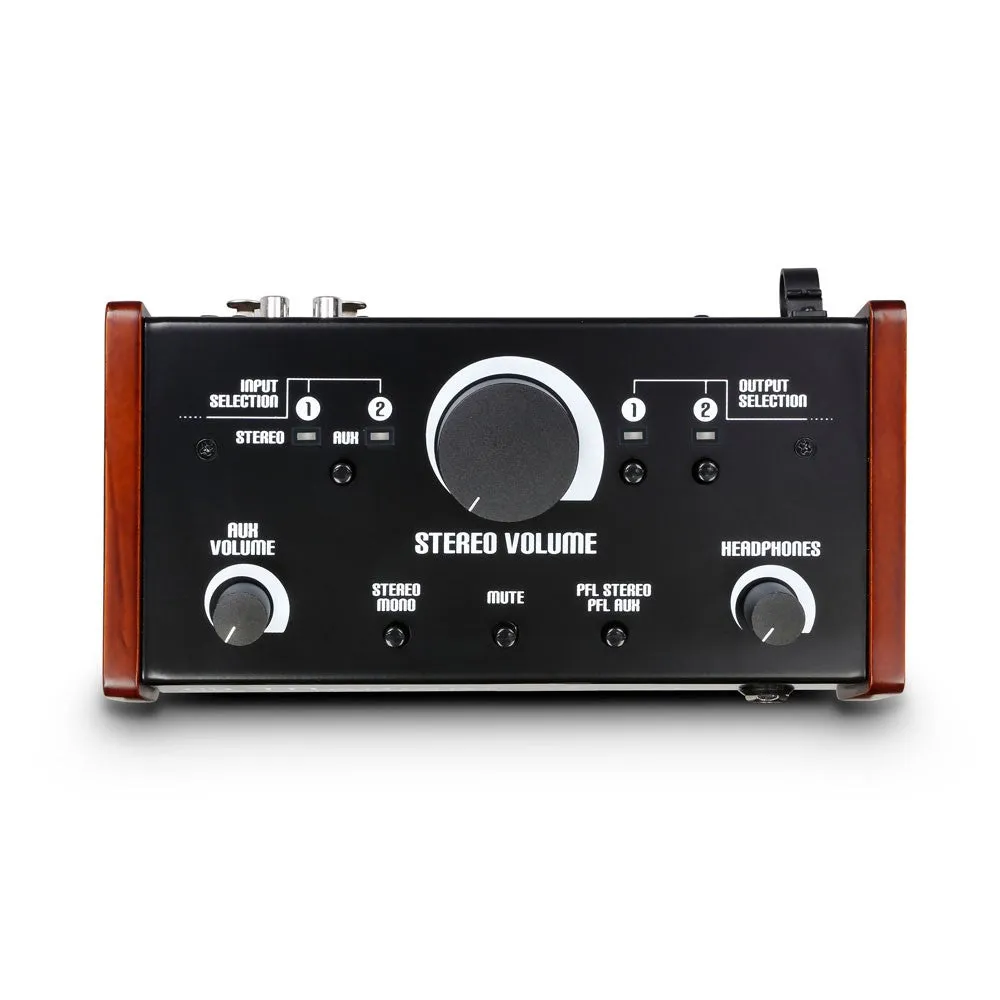

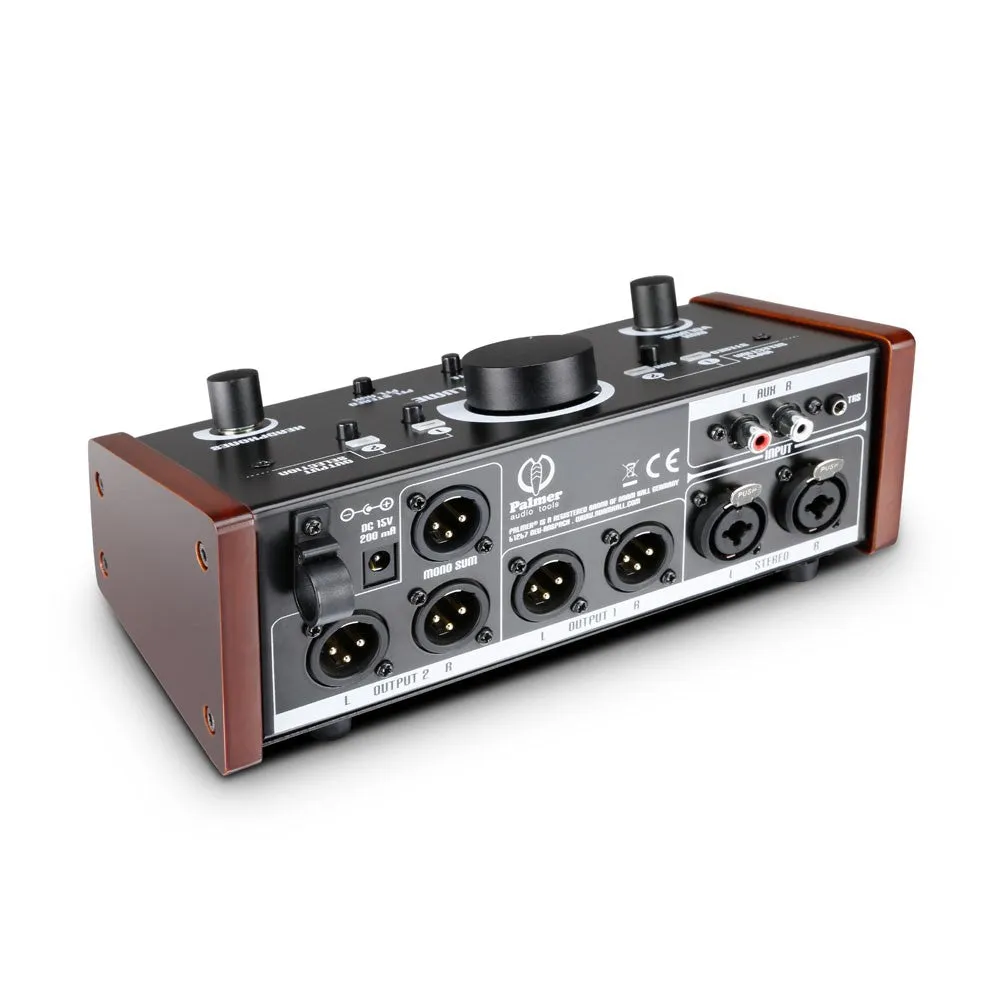

Symmetric combo sockets serve as stereo input. The Monicon® L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon® L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.
Features
- Stereo and AUX inputs
- Dual outputs
- Additional mono output
- Balanced and unbalanced connection
- Integrated high quality headphone amplifier
- Mono, mute and PFL switches
- Stereo volume, AUX and headphone level controls
- Elegant design with solid wood side panels
- Built to last
Specifications
| Product type | Other Studio and Recording Equipment |
| Channels | 2 |
| Inputs | 2 |
| Input connectors | 3.5 mm TRS , RCA , XLR |
| Input type | balanced/unbalanced (depending on TS/TRS connection) |
| Max. input level | 20 dBu |
| Input impedance | (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s) |
| Outputs | 3 |
| Output connectors | XLR |
| Output type | balanced/unbalanced (depending on TS/TRS connection) |
| Max. output level | 20 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40000 Hz |
| Total Harmonic Distortion (THD) | 0.001 % |
| Max. attenuation | (Attenuator Mute) 112 , (Attenuator) 85 |
| Controls | attenuation , input selector , mono , mute , output selector , PFL source |
| Cabinet material | sheet steel , wood |
| Cabinet surface | Powder coated |
| Width | 218 mm |
| Height | 77 mm |
| Depth | 100 mm |
| Weight | 1,14 kg |
