Mishimoto

MMBCC-F2D-03BE

Oil Catch Cans

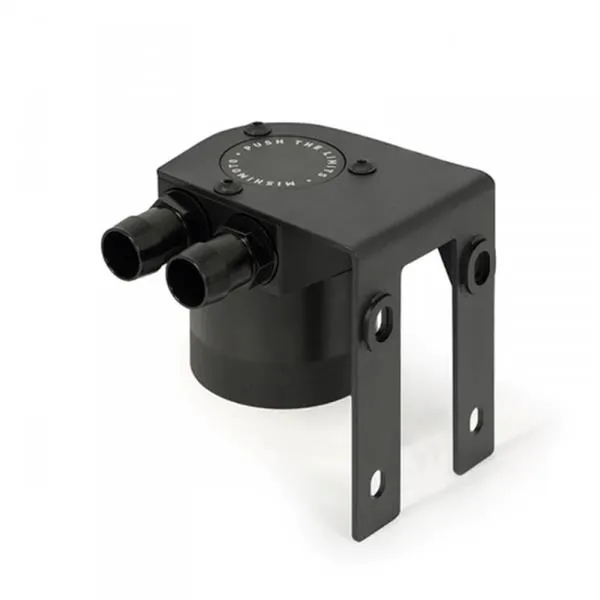

High-output engines require high-flow crankcase ventilation. More air and fuel going into the cylinder means more blow-by working its way past the piston rings and traveling around your intake system. All that volume needs room to flow, and if you?re using a catch can, it better flow well too. Luckily, Mishimoto has created a catch can that meets those needs. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a newly engineered, CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. The included 3/8? NPT plug in the bottom of the can allows you to drain the can without removing the bottom or attach our available drain kit for even easier servicing. To make this kit direct-fit for your 2003-2007 Ford 6.0L Powerstroke, Mishimoto includes a custom-engineered bracket that bolts to the driver?s side frame rail, just behind the wheel well. This mounts the can in an easy to access location that?s out of the way of engine components. The 3mm thick steel bracket is gusseted and powder-coated black for the highest strength and resistance to the elements. Also included with this kit is a set of direct-fit nitrile hoses to carry blow-by away from your engine and into the catch can. Of course, all our catch can kits come with Mishimoto's Lifetime Warranty with Accident Protection, and this kit is no exception.

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
