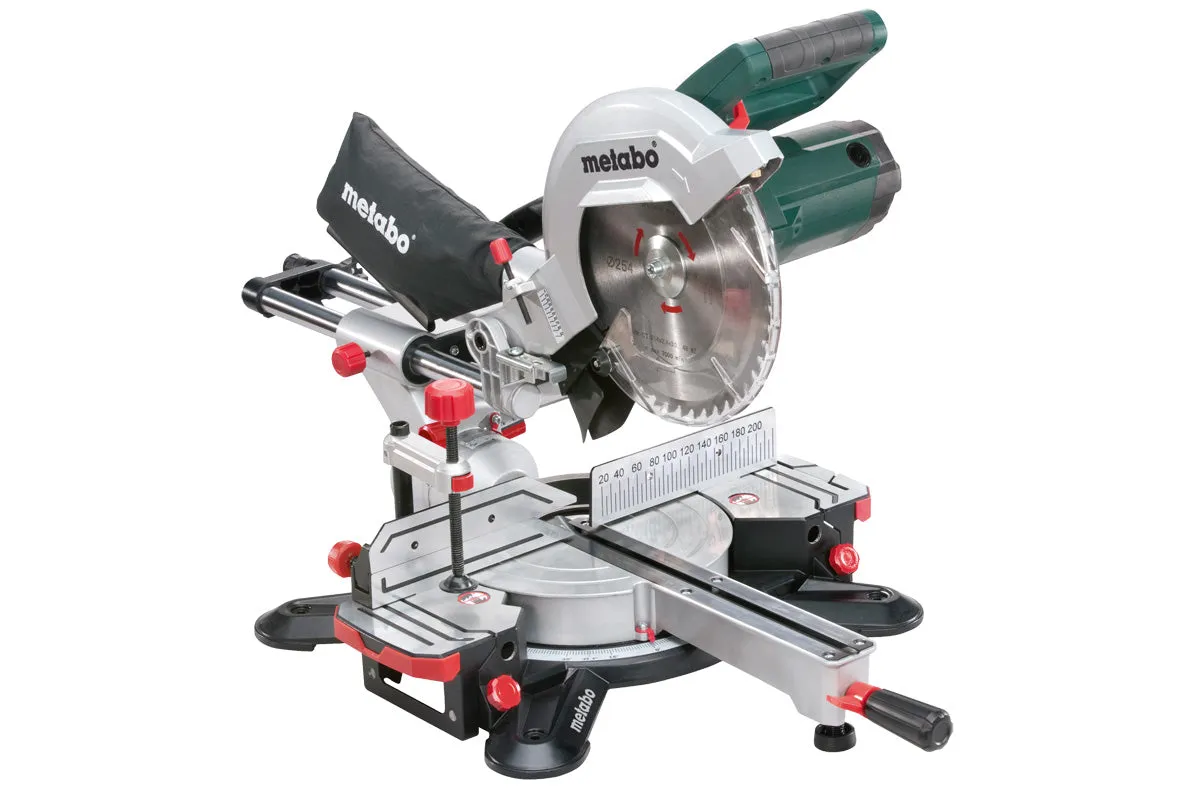

Metabo Mitre Saw KGS 254M
Sliding function for wide work pieces. Compact light weight, suitable also for one-handed transport. Robust die-cast aluminium design for the highest demands. Easy transport thanks to ergonomically-designed handles and saw head lockEffective dust extraction via integrated dust scoop. Fast and precise setting of common angles using stop points. Laser for exact display of the cutting line (mains powered, no batteries required)
Adjustable and extendable table width extension, removable to put long panels, slabs etc. underneath. Bright LED work light for illumination of the cutting line (mains powered, no batteries required) Sliding high rear fence profiles for safe sawing. Material clamp for secure fixing of the work piece from the top or front. Depth stop for easy creation of grooves. Saw head can be inclined to the left, with additional angle range for undercuts. All scales and operating elements are visible from the working position and can be operated intuitively. Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required
Specification:
- Dimensions | 790 x 515 x 515 mm / 2.6 x 1.7 x 1.7 ft mm
- Maximum cutting width 90 °/45 ° | 305 / 205 mm // 12 / 8 1/16 " mm
- Maximum cutting depth at 90 °/45 ° | 92 / 47 mm // 3 5/8 / 1 13/16 " mm
- Cutting capacity 90 °/90 ° | 305 x 92 mm / 12 x 3 5/8 " mm
- Cutting capacity 45 °/45 ° | 205 x 47 mm / 8 1/16 x 1 27/32 " mm
- Turntable setting left/right | 47 / 47 °
- Saw blade tilt left/right | 47 / 2 °
- Saw blade | 254 x 30 mm / 10 x 1.181 " mm
- Rated input power S1 100% | 1450 W
- Rated input power S6 20% | 1800 W
- No-load speed | 4500 /min
- Revolutions at rated load | 3150 /min
- Cutting speed | 60 m/s / 197 ft/s m/s
- Weight | 16.3 kg / 36 lbs kg
- Cable length | 2 m / 7 ft m
