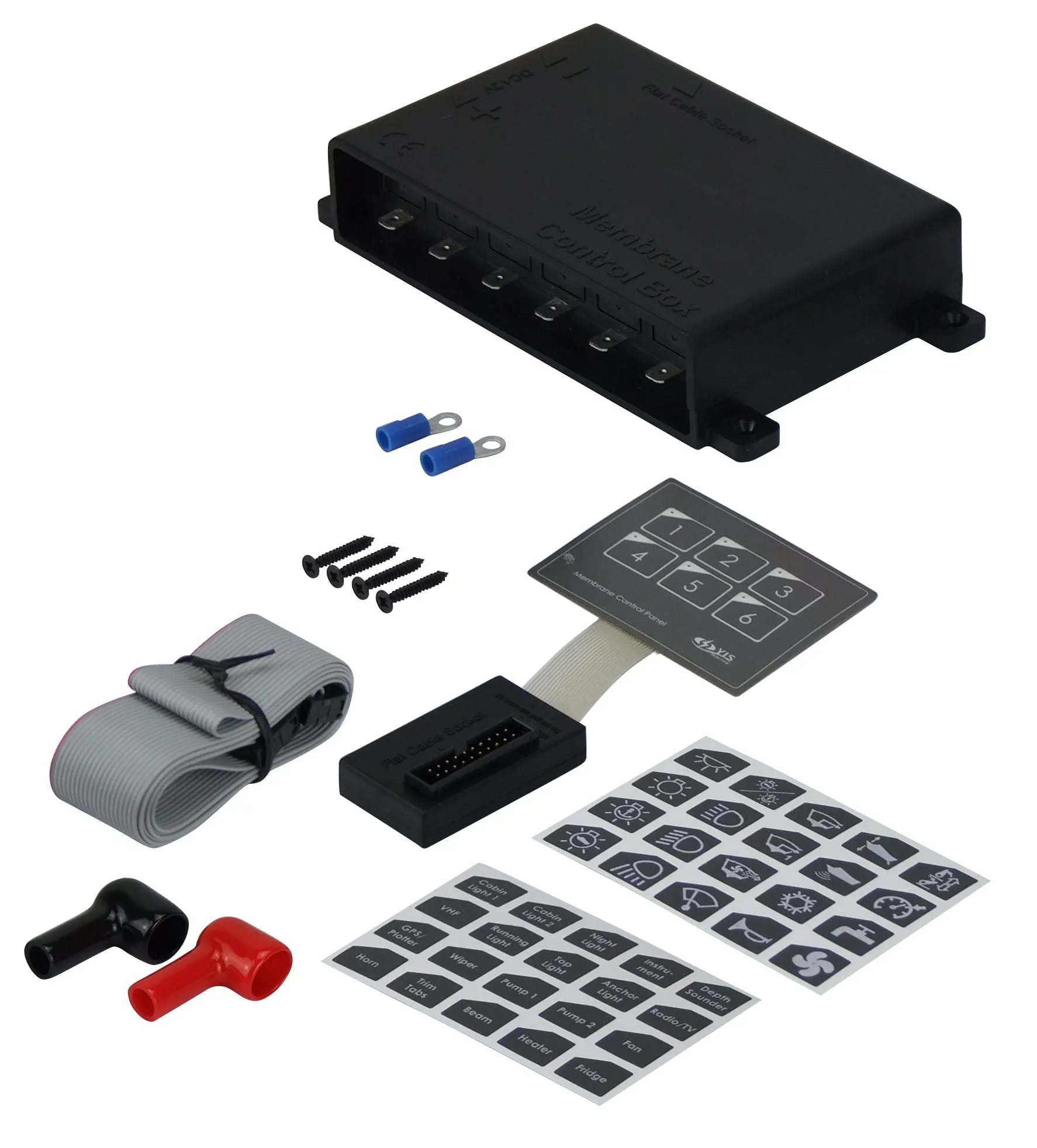

Membrane Touch Control Panels – Deluxe 6 Switch Panel Kit (53066)

• Faceplate: PET membrane touch panel.
• Circuit protection: Built-in resettable fuse (PPTC).
• Panel rating:10Amp per branch @ DC 12V.
• Mounting Depth: < 10mm (24mm ribbon cable clearance).
• Max Cumulative Amp: 35Amp.
• Max Current: 12V – 10 Amps per branch.
• IP Rating:67, CE Certified.
• 6 Switches
• Ultra compact panel size.
• Easy to install, almost no mounting depth required.
• Remotely installed control box.
• ON indicating LED and 10Amp PPTC protection.
• Heavy duty self adhesive (3M brand) for mounting.
• Warranty: 1 Year.

Note: * Mount with 4 gauge screws only (included).

Features:
Part No.: 53066
Description: Deluxe Membrane Touch Control 6 Switch Panel
Touch Panel (WxH): 70 x 62.5
Panel Cut-out: 33 x 15
Control Box (HxWxH): 90 x 136 x 59
