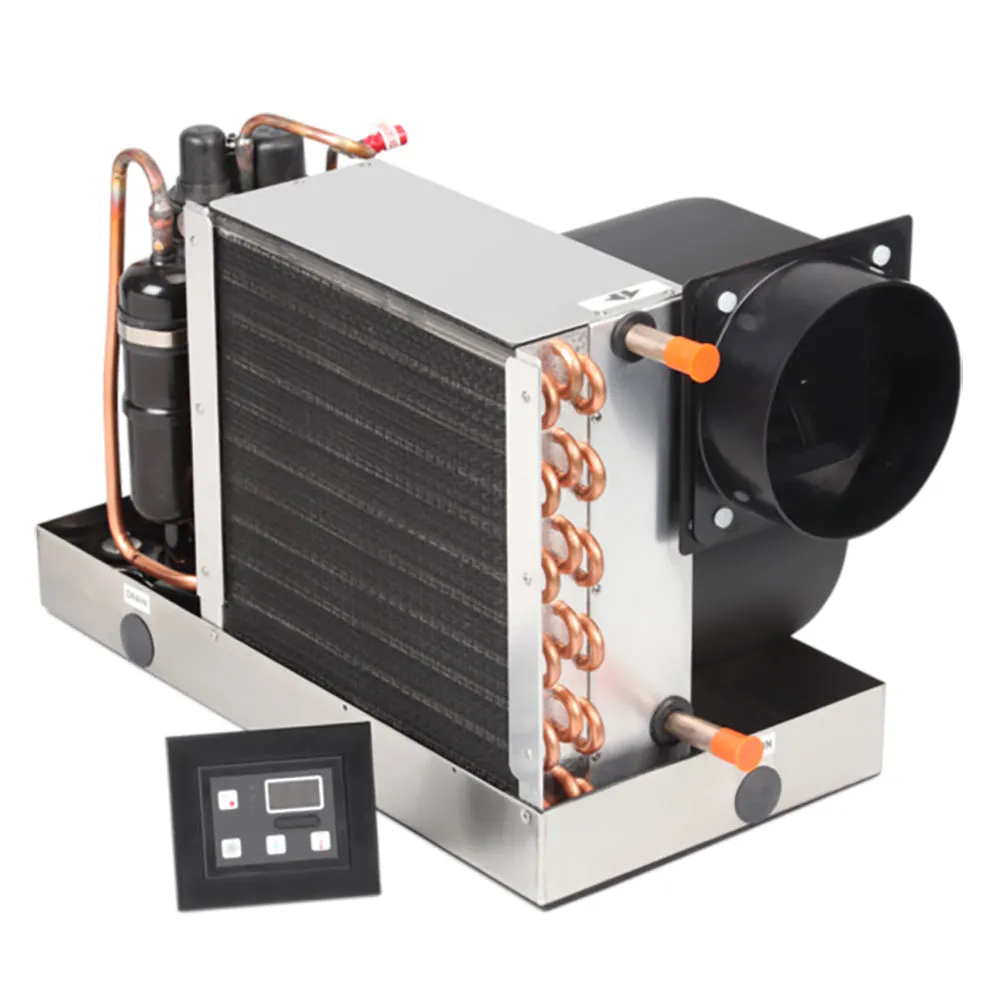

EnviroComfort ECD6KZ-HV AC Retrofit Kit - 6,000 BTU - 230V

The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round.  This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint.  The blower can be rotated to a horizontal or vertical position for greater installation flexibility.  Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation.  The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500307

Features:

• High-velocity, rotatable blower for horizontal or vertical installation


• Environmentally friendly R-410A refrigerant


• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)


• Plastic remote electrical box for convenience in mounting


• Stainless-steel drain pan


• Pre-installed return-air filter, easily removable and cleanable


• Small, compact, space-saving design

Specifications:

• Input voltage - 230 V


• Starting amps - 34 A


• Fuse Max. / Min. - 20 A/12 A


• Input frequency 50/60 Hz


• Refrigerant type - R410A


• Colling capacity - 6,000 BTU


• Min. supply duct size - 4"


• Seawater inlet connection - .625"


• Dimensions - Height 11.25" x Width 16" x Depth 9"

In the Box:

• Self-contained AC unit


• Digital control w/bezel and 15' cable


• Instruction manual

*Sold as an Individual
